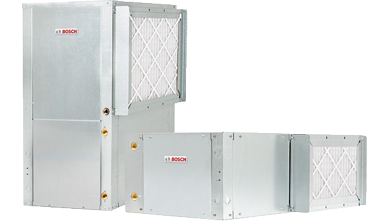

SV iSeries Greensource Heat Pump

The SV Model is a cost-effective single stage water source heat pump designed for commercial retrofit and new construction applications.

  • Energy efficient – Meets ASHRAE 90.1 compliance
  • Copper aluminum fin coil
  • Specifically designed for replacement applications
  • Available in Vertical, Horizontal and Counterflow
  • Standard PSC motor
  • High and low pressure switches
  • Electronic circuit board with alert display which can also be displayed via the thermostat
  • G90 galvanized steel cabinet
  • 1/2”, 1 1/2 lb. Dual density fiberglass insulation
  • Condensate overflow switch
  • Water coil freeze protection
  • Evaporator coil freeze protection
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
SV0076.8 15.1 4.9 3.4 24.25x19x19 96
SV0098.7 14.6 5.7 3.2 24.25x19x19 100
SV01511.8 14.0 8.7 3.1 24.25x19x19 105
SV01821.2 15.8 14.3 3.5 32.25x21.5x21.5 136
SV02425.0 15.5 17.0 3.4 32.25x21.5x21.5 174
SV03031.0 15.3 20.9 3.2 39.25x21.5x21.5 181
SV03639.9 16.9 26.9 3.5 43.25x21.5x26 190
SV04141.2 15.6 29.4 3.3 39.5x21.5x21.5 236
SV04242.6 14.5 31.0 3.2 43.25x21.5x26 231
SV04848.8 14.9 35.4 3.4 45.25x24x32.5 274
SV06060.1 15.0 46.9 3.2 45.25x24x32.5 288
SV07066.4 15.0 50.8 3.4 58.25x26x33.25 316

Warranty Information

  • All Parts for 12 months -
  • Compressor for 60 months -

Available Documents
