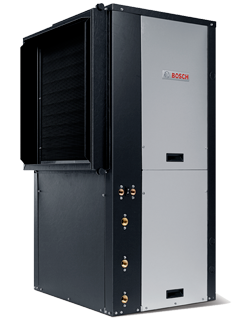

Geo 6000 WA/WW TA & TW Series

TA Series The ultimate in performance! This luxurious two stage unit available from 2 to 6 tons features quiet comfort while its energy efficiency makes it the best-in-class in operating cost savings. TW Series This water to water unit with its exclusive design boasts industry leading efficiency at full load heating and cooling, but is even more efficient during part load operation.

  • 2 Stage compressor
  • Low cost operation
  • Environmentally friendly R410-A refrigerant
  • Quite operation
  • Available in 2 through 6 tons
  • Geothermal ready
  • TA: Ultimate Performance
  • TA: Vertical, c/flow, horizontal & split configurations
  • TW: Extreme efficiency
MODELClg Capacity MBtuHEERHtg Capacity MBtuHCOPDimensions HxWxDWeight Lbs.
TA02531.0 32.5 32.5 6.5 47.25x21.5x26 330
TA03541.2 34.0 43.0 6.3 47.25x24x33.25 365
TA04956.0 32.5 53.0 6.2 58x26x33.25 445
TA06178.5 33.0 78.5 6.2 66.25x26x33.25 555
TA07178.0 28.8 89.0 5.2 66.25x26x33.25 645
TW02531.0 25.7 31.0 4.6 24.12x32.5x24 0
TW03543.0 24.5 43.0 4.7 24.12x32.5x24 0
TW04958.0 23.5 58.0 4.5 24.12x32.5x24 0
TW06174.5 23.3 56.0 4.7 24.12x32.5x24 0
TW07186.5 21.8 64.0 4.4 24.12x32.5x24 0

Warranty Information

  • Compressor and Coils for 120 months -
  • All Parts for 120 months - Assembled by Bosch
  • Limited Labor for 120 months -

Available Documents

  • View Document (Bosch Geothermal Heatpumps, Consumer Literature)
  • View Document (Bosch Geothermal Heatpumps, Consumer Literature)
  • View Document (Bosch Geothermal Heatpumps, Specification Sheet)
  • View Document (TA Series Installation & Operation Manual, Owners Manual, Installation & Operation)
  • View Document (TA Split Series Installation & Operation Manual, Owners Manual, Installation & Operation)
  • View Document (TW Series Installation & operation Manual, Owners Manual, Installation & Operation)
  • View Document (TW Series Specification Guide, Specification Sheet, Technical Information)
